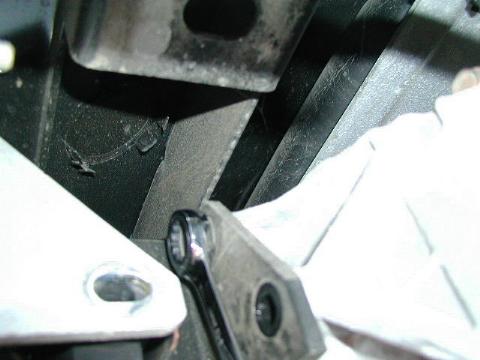

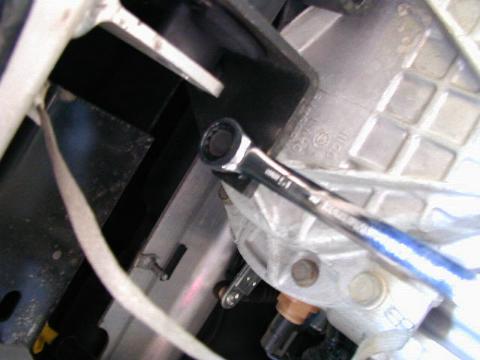

| Here I use a 15mm mac socket wrench to
removed the passengers transaxle bolts. |
|
|
| 2 |
| |
 |
|
| |
|
|
| Here I remove the drivers side. |
|
|
| 3 |
| |
 |
|
| |
|
|

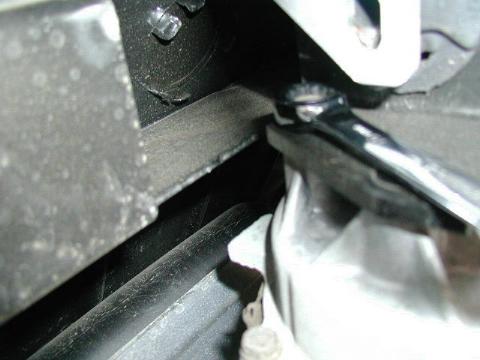

| Here is the other top passengers bolt. |
|
|
| 4 |
| |
 |
|
| |
|
|
| Here is the other drivers side top bolt. |
|
|
| 5 |
| |
 |
|
| |
|
|

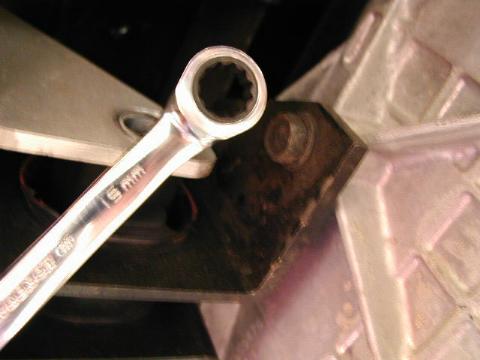

| This releases the rear mount. |
|
|
| 6 |
| |
 |
|
| |
|
|

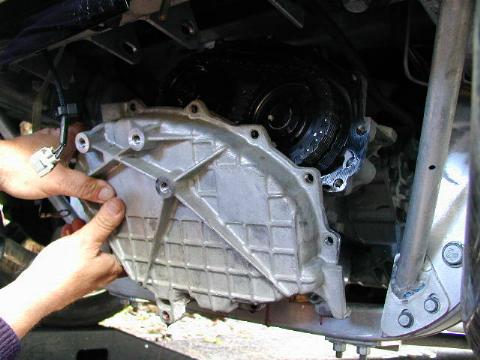

| I then remove the 12 transaxle cover bolts
and the cover comes off with some help. It was really glued and had to
bang it a little to loosen it. |
|
|
| 7 |
| |
 |
|
| |
|
|

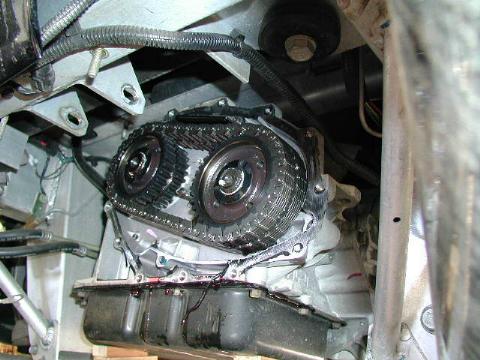

| Walla,,, the gears appear. |
|
|
| 8 |
| |
 |
|
| |
|
|
|
|
|
| 9 |
| |
 |
|
| |
|
|

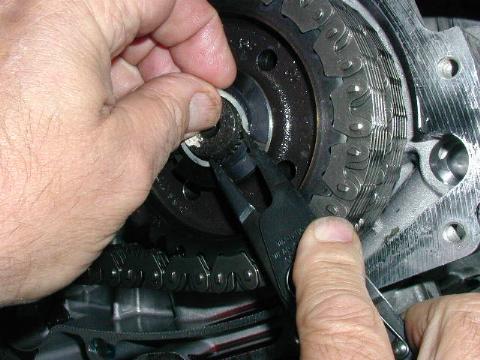

| Obi one uses his specialty tools to remove
the shaft snap ring from the small gear. |
|
|
| 10 |
| |
 |
|
| |
|
|
|
|
|
| 11 |
| |
 |
|
| |
|
|
| Here the shaft snap ring gets removed. |
|
|
| 12 |
| |
 |
|
| |
|
|

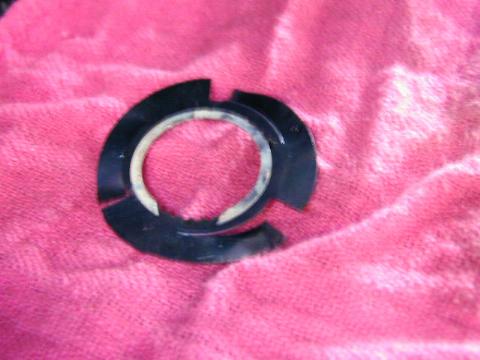

| What the shaft snap ring looks like (silver)
and the wave washer(black). |
|
|
| 13 |
| |
 |
|
| |
|
|

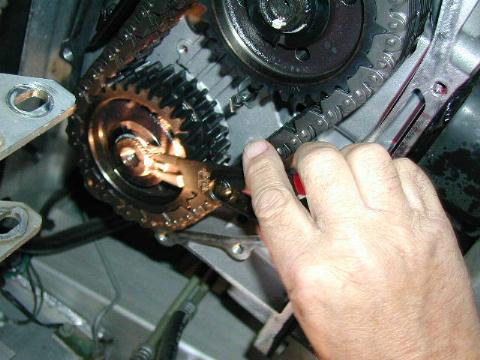

| Here is the shaft snap ring from the larger
gear. |
|
|
| 14 |
| |
 |
|
| |
|
|
| Here the shaft snap rings fully removed. |
|
|
| 15 |
| |
 |
|
| |
|
|

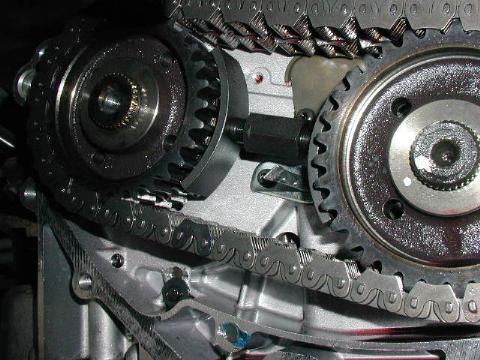

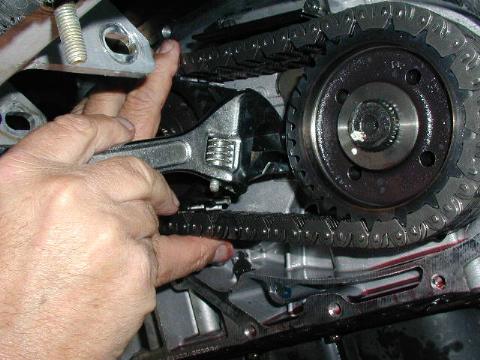

| Here the spreader tool gets used to relieve
the tension from the large chain. This neat tool comes with the kit. Obi
one had to bang the gears a little to loosen them. |
|
|
| 16 |
| |
 |
|
| |
|
|
| The gears come off and here you go. |
|
|
