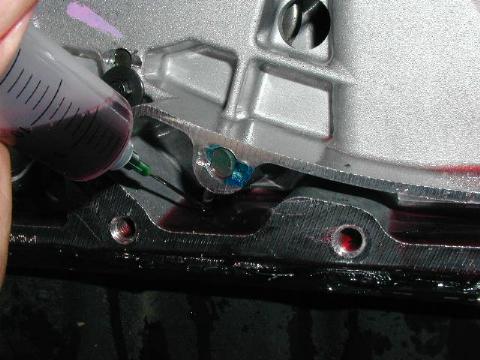

| Here I remove the extra axle fluid. This
had to be done so that the new seal will adhere correctly. |
|
|
| 2 |
| |
 |
|
| |
|
|

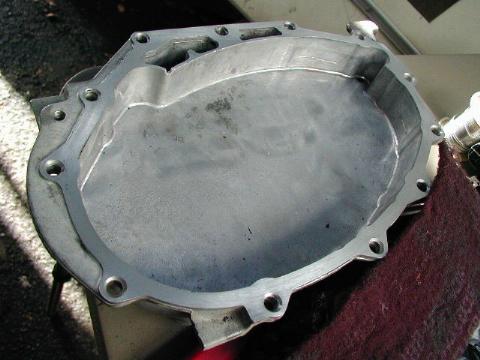

| Here I cleaned the old RTV from the axle
cover. |
|
|
| 3 |
| |
 |
|
| |
|
|

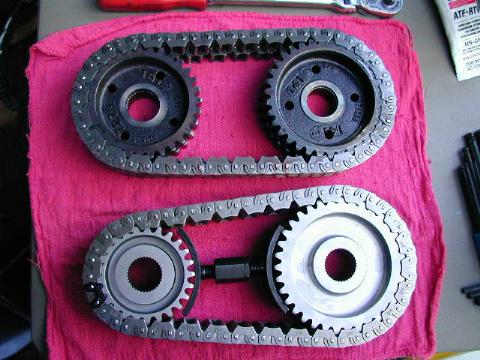

| Here you see a side by side comparison
of the old gears(top) and the new gears(bottom). |
|
|
| 4 |
| |
 |
|
| |
|
|

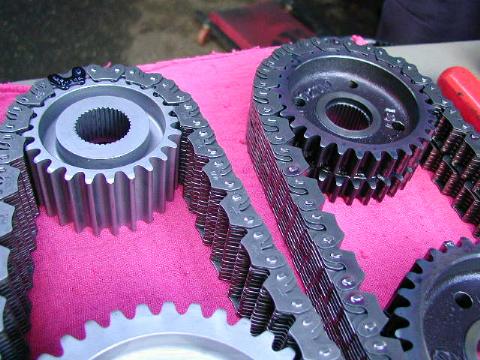

| Side view of old gears(left) and new gears(right). |
|
|
| 5 |
| |
 |
|
| |
|
|

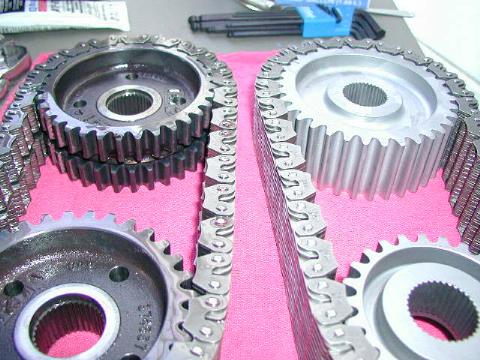

| Now the other side of the new gears(left)
and old gears(right). |
|
|
| 6 |
| |
 |
|
| |
|
|

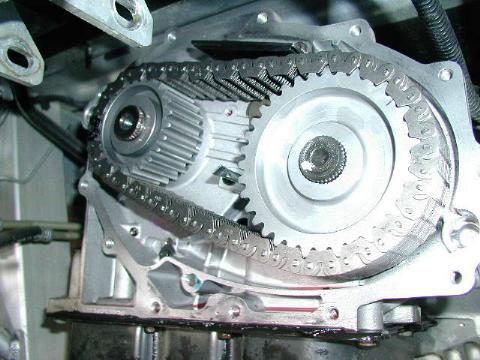

| Now you install the new gears in the reverse
order of removal. |
|
|
| 7 |
| |
 |
|
| |
|
|

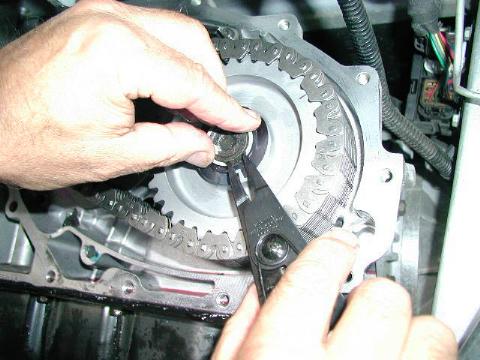

| The clip go on large gear. |
|
|
| 8 |
| |
 |
|
| |
|
|

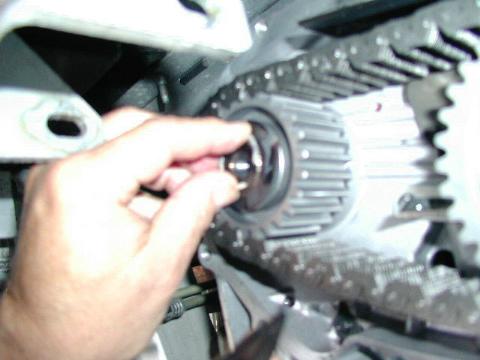

| The clip go on small gear. |
|
|
| 9 |
| |
 |
|
| |
|
|

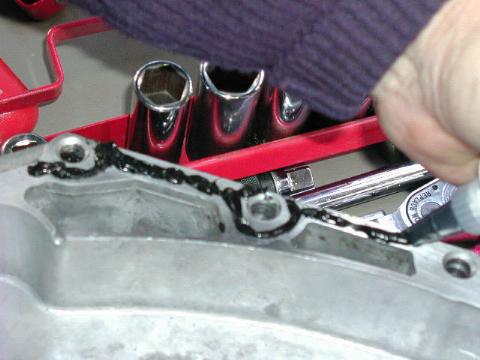

| Here the new RTV goes on. |
|
|
| 10 |
| |
 |
|
| |
|
|

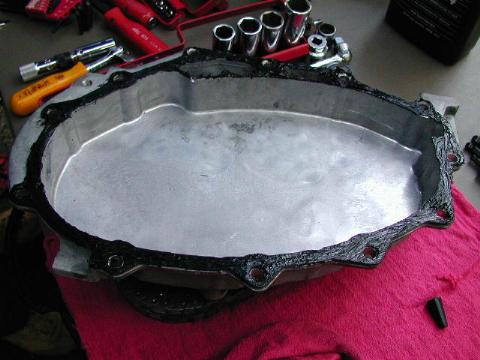

| Here is a complete shot of a well spackled
cover. |
|
|
| 11 |
| |
 |
|
| |
|
|

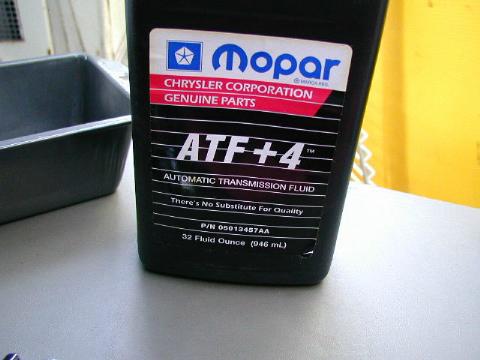

| The tranny fluid to be used. |
|
|
| 12 |
| |
 |
|
| |
|
|

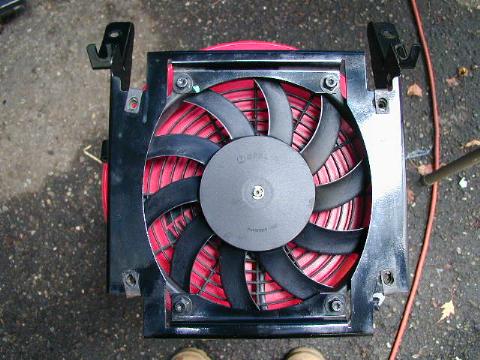

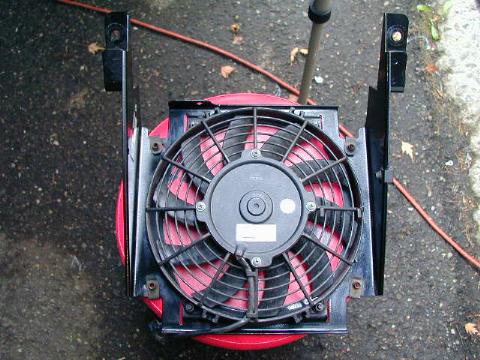

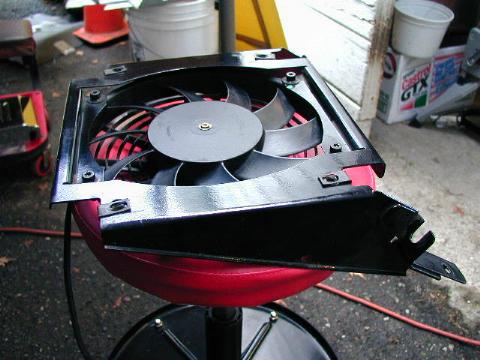

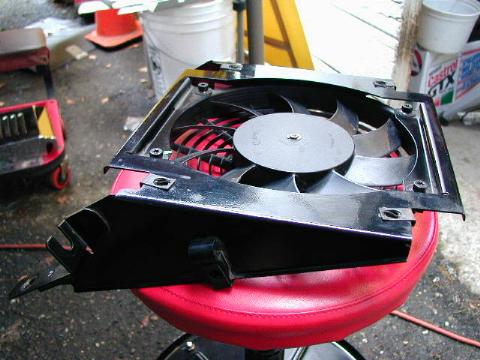

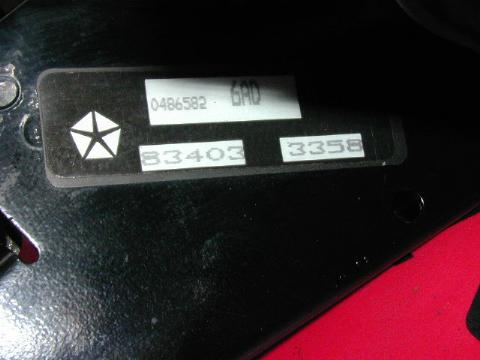

| Here are some good shots of the fan assembly. |
|
|
