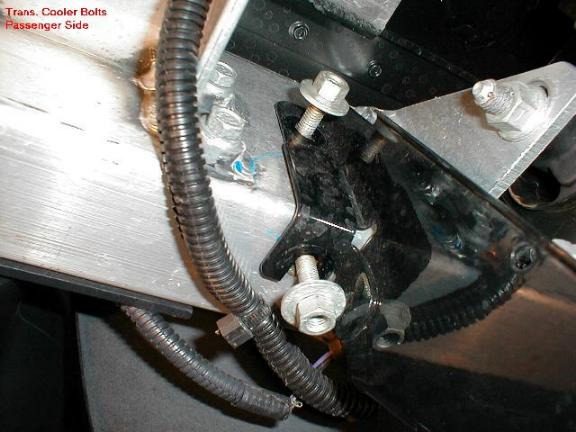

| Trans cooler bolts passenger side. |
|
|
| 2 |
| |
 |
|
| |
|
|

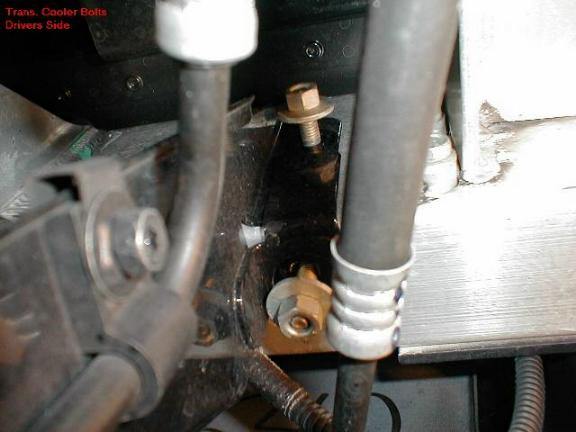

| Trans cooler bolts drivers side. |
|
|

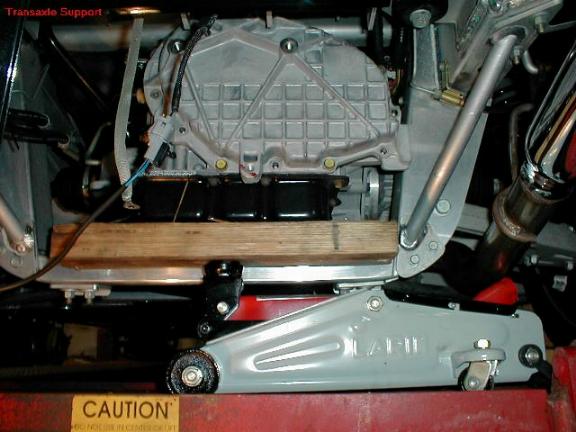

| 3 |
| |
 |
|
| |
|
|
|
|
|
| 4 |
| |
 |
|
| |
|
|

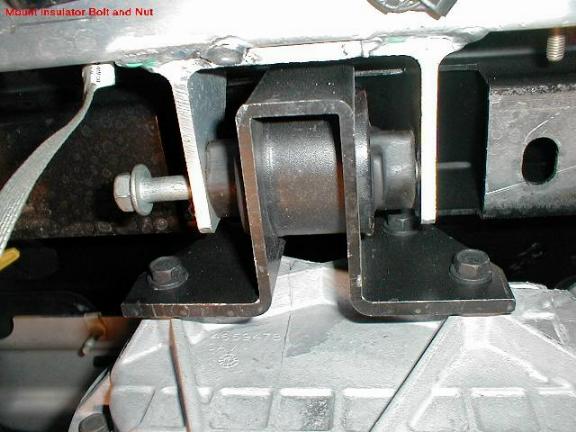

| Mount insulator bolt and nut. |
|
|

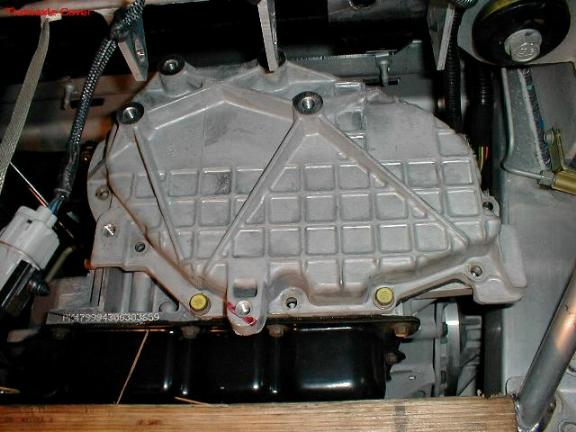

| 5 |
| |
 |
|
| |
|
|
|
|
|

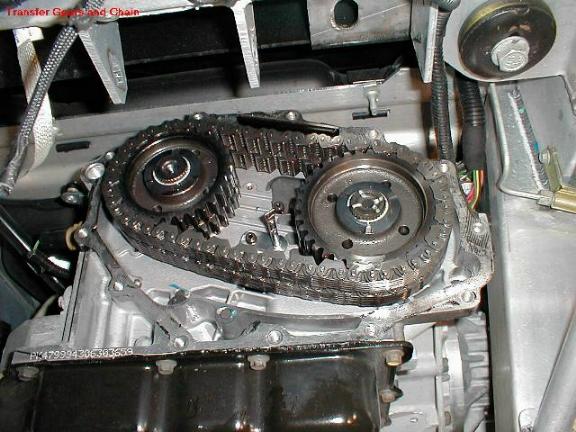

| 6 |
| |
 |
|
| |
|
|
|
|
|
| 7 |
| |
 |
|
| |
|
|
|
|
|
| 8 |
| |
 |
|
| |
|
|

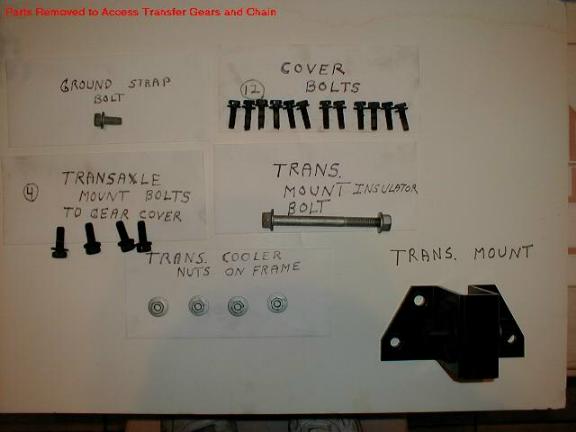

| Parts removed to access transfer gears and chain. |
|
|
| 9 |
| |
 |
|
| |
|
|

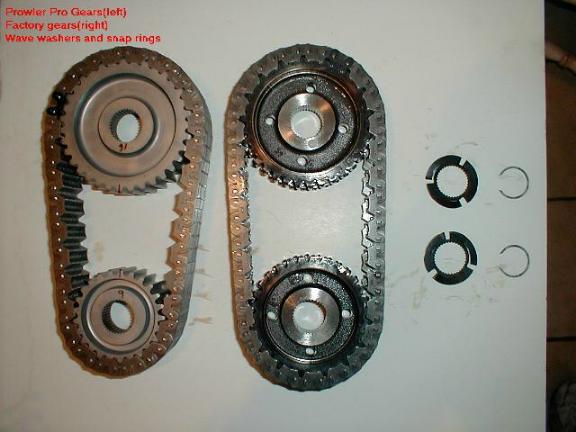

Prowler Pro gears(left)
Factory gears(right)
Wave washers and snap rings. |
|
|
| 10 |
| |
 |
|
| |
|
|

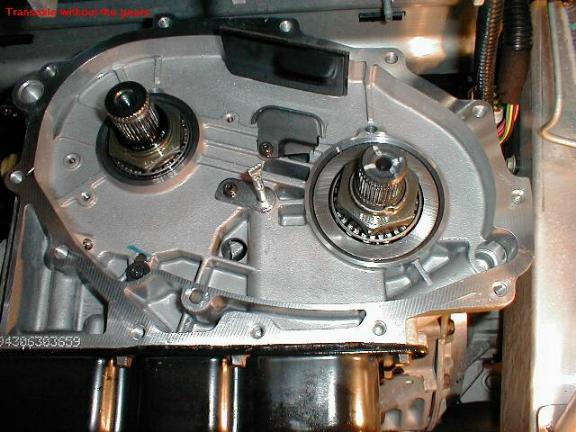

| Transaxle without the gears. |
|
|
| 11 |
| |
 |
|
| |
|
|

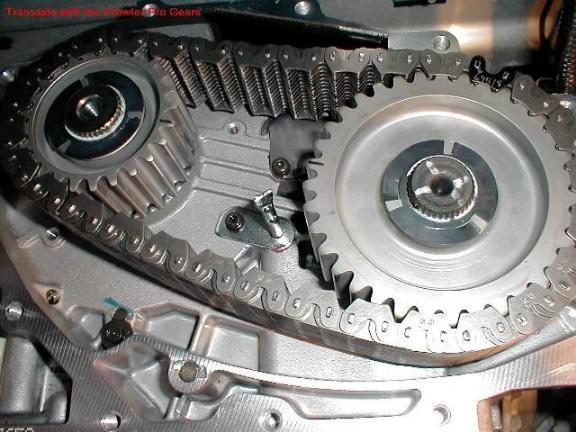

| Transaxle with the Prowler Pro Gears. |
|
|
| 12 |
| |
 |
|
| |
|
|
|
|
|

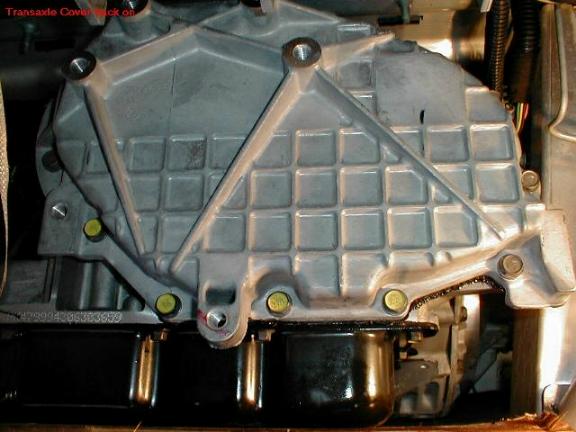

| 13 |
| |
 |
|
| |
|
|

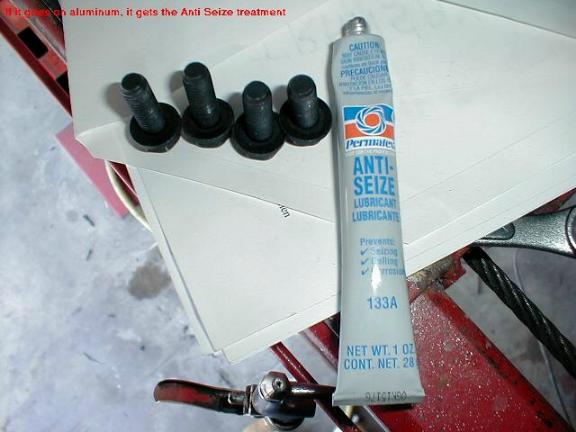

| If it goes on aluminum, it gets the Anti Seize treatment. |
|
|
| 14 |
| |
 |
|
| |
|
|

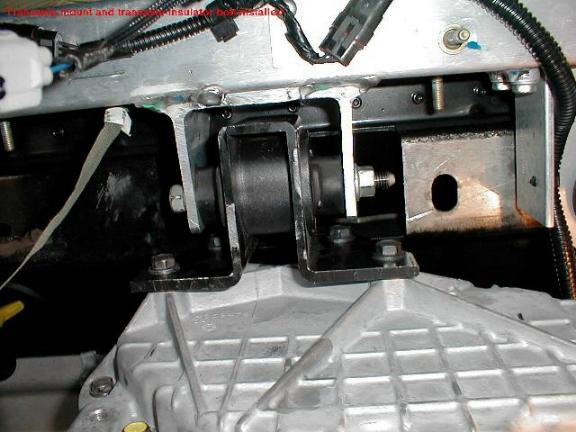

| Transaxle mount and transaxle insulator bolt installed. |
|
|

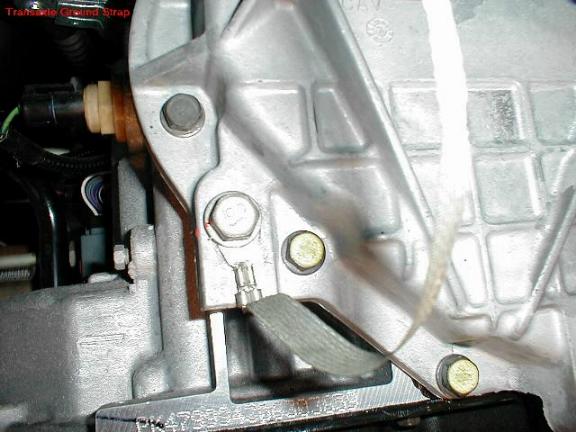

| 15 |
| |
 |
|
| |
|
|
|
|
|

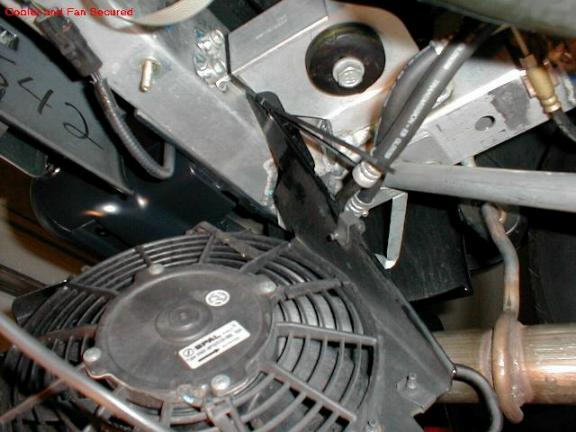

| 16 |
| |
 |
|
| |
|
|

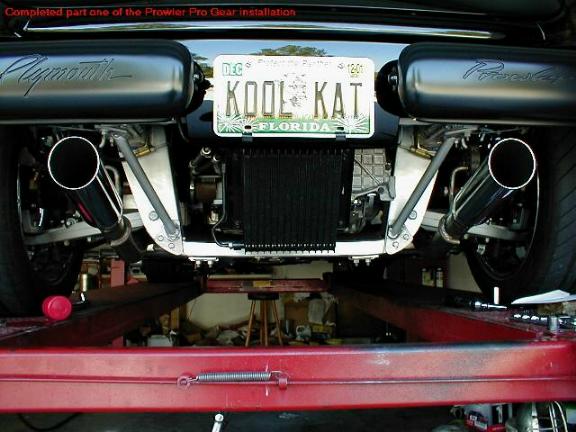

| Completed part one of the Prowler Pro Gear installation. |
|
|
